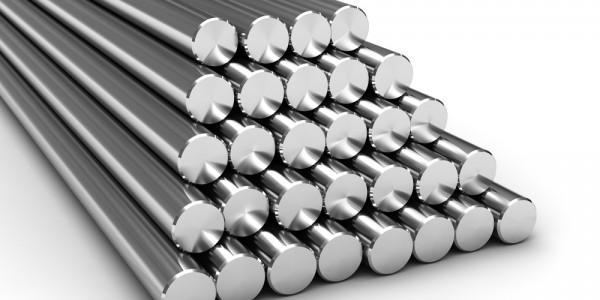

Elements for Motion’s Type WV Linear shafts are precision hardened and ground. The hard chrome plated carbon steel shaft is made from materials cf53 and ck55 and is available in metric measurements, with diameter ranging from 5mm-50mm and lengths of 3,000mm or 6,000mm..
RFQ / Contact Download PDF| Dia [mm] | Type | Weight [kg/m] | Length [mm] | Tolerance iso H7 [mm] | Straightness T1 [mm/m] | Roundness [um] |
|---|---|---|---|---|---|---|
| 5 | WV 5 | 0.16 | 3000 | 5.000 / 4.988 | 0.2 | 4 |
| 6 | WV 6 | 0.23 | 6000 | 6.000 / 5.988 | 0.2 | 4 |
| 8 | WV 8 | 0.40 | 6000 | 8.000 / 7.985 | 0.2 | 4 |
| 10 | WV 10 | 0.62 | 6000 | 10.000 / 9.985 | 0.1 | 4 |
| 12 | WV 12 | 0.89 | 6000 | 12.000 / 11.982 | 0.1 | 5 |
| 14 | WV 14 | 1.21 | 6000 | 14.000 / 13.982 | 0.1 | 5 |
| 16 | WV 16 | 1.58 | 6000 | 16.000 / 15.982 | 0.1 | 5 |
| 20 | WV 20 | 2.47 | 6000 | 20.000 / 19.979 | 0.1 | 6 |
| 25 | WV 25 | 3.85 | 6000 | 25.000 / 24.979 | 0.1 | 6 |
| 30 | WV 30 | 5.55 | 6000 | 30.000 / 29.979 | 0.1 | 6 |
| 40 | WV 40 | 9.87 | 6000 | 40.000 / 39.975 | 0.1 | 7 |
| 50 | WV 50 | 15.40 | 6000 | 50.000 / 49.975 | 0.1 | 7 |
